Nominal Hose I.D.		Nominal Hose O.D.	Working Pressure		Burst Pressure
Inch	mm	mm	Bar	psi	Bar	psi
3/16	4.5 - 5.4	10.3 - 11.9	35	525	140	2100
1/4	6.1 - 7.0	11.9 - 13.5	28	420	112	1680
5/16	7.6 - 8.5	13.5 - 15.1	28	420	112	1680
3/8	9.2 - 10.1	15.1 - 16.7	28	420	112	1680
1/2	12.4 - 13.5	19.0 - 20.6	28	420	112	1680
5/8	15.6 - 16.7	22.2 - 23.8	25	375	100	1500
3/4	18.8 - 20.0	27.0 - 27.8	21	315	84	1260
1	25.2 - 26.8	34.8 - 35.6	20	300	80	1200

Working Temperature: -40°C to +100°C with peaks up to +120°C

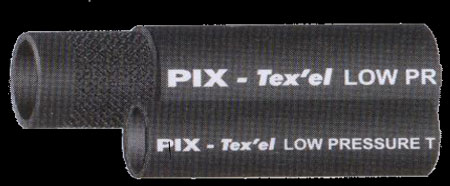

Appliction : Used in low pressure hydraulic oil lines and pneumatic lines.
                    Can be used in flame resistant applications. Meets SAE100 R6 requirements.
